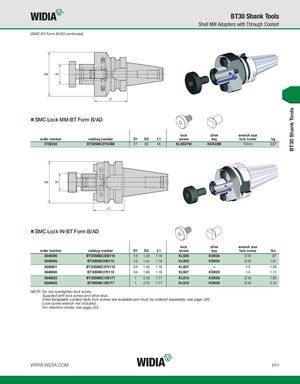

Каталог Widia инструментальная оснастка - страница 625
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
(SMC BT Form B/AD continued)
SMC Lock MM-BT Form B/AD
lock drive wrench size
| order number | catalog number | D1 | D2 | L1 | screw | key | lock screw | kg | ||
| 3752230 | BT30SMC27045M | 27 | 60 | 45 | KLSS27M | KDK22M | 10mm | 0,97 |
SMC Lock IN-BT Form B/AD
| order number | catalog number | D1 | D2 | L1 | lock screw | drive key | wrench size lock screw | lbs |
| 3648599 | BT30SM2C050118 | 1/2 | 1.20 | 1.18 | KLS05 | KDK04 | 3/16 | .97 |
| 3648598 | BT30SMC050118 | 1/2 | 1.44 | 1.18 | KLS05 | KDK04 | 3/16 | 1.01 |
| 3648601 | BT30SM2C075118 | 3/4 | 1.46 | 1.18 | KLS07 | — | 1/4 | 1.08 |
| 3648600 | BT30SMC075118 | 3/4 | 1.69 | 1.18 | KLS07 | KDK05 | 1/4 | 1.13 |
| 3648653 | BT30SM2C100177 | 1 | 2.19 | 1.77 | KLS10 | KDK06 | 5/16 | 1.83 |
| 3648602 | BT30SMC100177 | 1 | 2.75 | 1.77 | KLS10 | KDK06 | 5/16 | 2.16 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knobs, see page J33.
