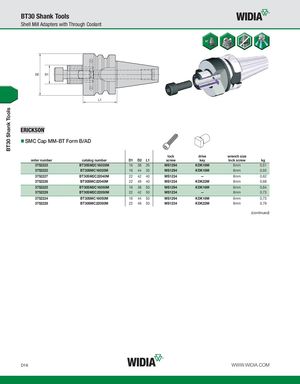

BT30 Shank Tools BT30 Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-BT Form B/AD lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3752223 BT30SM2C16035M 16 38 35 MS1294 KDK16M 6mm 0,51 3752222 BT30SMC16035M 16 44 35 MS1294 KDK16M 6mm 0,55 3752227 BT30SM2C22040M 22 42 40 MS1234 — 8mm 0,62 3752226 BT30SMC22040M 22 49 40 MS1234 KDK22M 8mm 0,68 3752225 BT30SM2C16050M 16 38 50 MS1294 KDK16M 6mm 0,64 3752229 BT30SM2C22050M 22 42 50 MS1234 — 8mm 0,73 3752224 BT30SMC16050M 16 44 50 MS1294 KDK16M 6mm 0,73 3752228 BT30SMC22050M 22 49 50 MS1234 KDK22M 8mm 0,79 (continued) D16 WWW.WIDIA.COM
