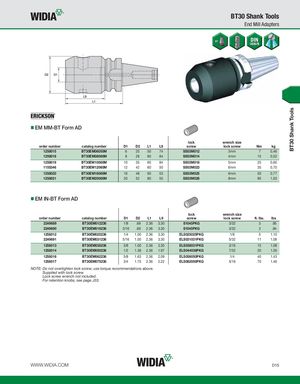

EM MM-BT Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | Nm | kg |
| 1258015 | BT30EM06050M | 6 | 25 | 50 | 74 | SS03M012 | 3mm | 7 | 0,46 |
| 1258018 | BT30EM08060M | 8 | 28 | 60 | 84 | SS03M014 | 4mm | 15 | 0,52 |
| 1258019 | BT30EM10060M | 10 | 35 | 60 | 84 | SS03M018 | 5mm | 25 | 0,60 |
| 1155346 | BT30EM12060M | 12 | 42 | 60 | 50 | SS03M023 | 6mm | 35 | 0,70 |
| 1258020 | BT30EM16060M | 16 | 48 | 60 | 53 | SS03M025 | 6mm | 50 | 0,77 |
| 1258021 | BT30EM20080M | 20 | 52 | 80 | 55 | SS03M026 | 8mm | 95 | 1,03 |
EM IN-BT Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 2249689 | BT30EM012236 | 1/8 | .69 | 2.36 | 3.30 | S1045PKG | 3/32 | 3 | .95 |
| 2249690 | BT30EM018236 | 3/16 | .69 | 2.36 | 3.30 | S1045PKG | 3/32 | 3 | .94 |
| 1258012 | BT30EM025236 | 1/4 | 1.00 | 2.36 | 3.30 | ELS025025PKG | 1/8 | 5 | 1.10 |
| 2249691 | BT30EM031236 | 5/16 | 1.00 | 2.36 | 3.30 | ELS031031PKG | 5/32 | 11 | 1.08 |
| 1258013 | BT30EM038236 | 3/8 | 1.00 | 2.36 | 3.30 | ELS038031PKG | 3/16 | 15 | 1.08 |
| 1258014 | BT30EM050236 | 1/2 | 1.38 | 2.36 | 1.97 | ELS044038PKG | 7/32 | 20 | 1.26 |
| 1258016 | BT30EM062236 | 5/8 | 1.63 | 2.36 | 2.09 | ELS056050PKG | 1/4 | 40 | 1.43 |
| 1258017 | BT30EM075236 | 3/4 | 1.75 | 2.36 | 2.22 | ELS062050PKG | 5/16 | 70 | 1.46 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
