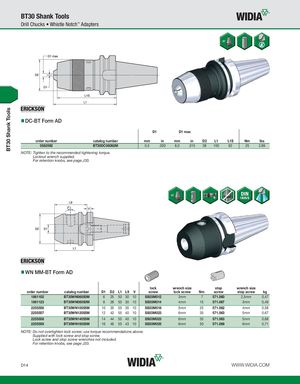

DC-BT Form AD
D1 D1 max
| order number | catalog number | mm | in | mm | in | D2 | L1 | L1S | Nm | lbs | |
| 3582592 | BT30DC08092M | 0,5 | .020 | 8,0 | .315 | 38 | 100 | 92 | 25 | 2.89 |
NOTE: Tighten to the recommended tightening torque. Locknut wrench supplied. For retention knobs, see page J33.
WN MM-BT Form AD
| order number | catalog number | D1 | D2 | L1 L | 9 | V | lock screw | wrench size lock screw | Nm | stop screw | wrench size stop screw | kg |
| 1861102 | BT30WN06050M | 6 | 25 | 50 3 | 0 | 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 0,47 |
| 1861123 | BT30WN08050M | 8 | 28 | 50 3 | 0 | 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 0,49 |
| 2255556 | BT30WN10055M | 10 | 35 | 55 3 | 5 | 10 | SS03M018 | 5mm | 25 | 571.062 | 4mm | 0,58 |
| 2255557 | BT30WN12055M | 12 | 42 | 55 4 | 0 | 10 | SS03M023 | 6mm | 35 | 571.063 | 5mm | 0,67 |
| 2255558 | BT30WN14055M | 14 | 44 | 55 4 | 0 | 10 | SS03M023 | 6mm | 35 | 571.063 | 5mm | 0,68 |
| 2255559 | BT30WN16055M | 16 | 46 | 55 4 | 3 | 10 | SS03M025 | 6mm | 50 | 571.069 | 6mm | 0,71 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches not included. For retention knobs, see page J33.
