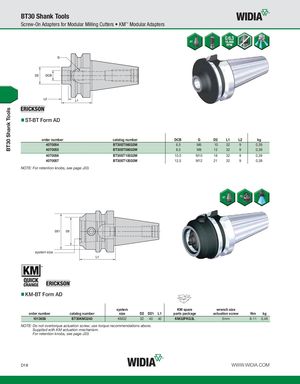

BT30 Shank Tools BT30 Shank Tools Screw-On Adapters for Modular Milling Cutters • KM™ Modular Adapters ST-BT Form AD order number catalog number DCB G D2 L1 L2 kg 4070054 BT30ST06032M 6,5 M6 10 32 9 0,39 4070055 BT30ST08032M 8,5 M8 13 32 9 0,39 4070056 BT30ST10032M 10,5 M10 18 32 9 0,39 4070057 BT30ST12032M 12,5 M12 21 32 9 0,38 NOTE: For retention knobs, see page J33. system size KM-BT Form AD system KM spare wrench size order number catalog number size D2 D21 L1 parts package actuation screw Nm kg 1013658 BT30KM3240 KM32 32 40 40 KM32PKG3L 5mm 8-11 0,49 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. For retention knobs, see page J33. D18 WWW.WIDIA.COM
