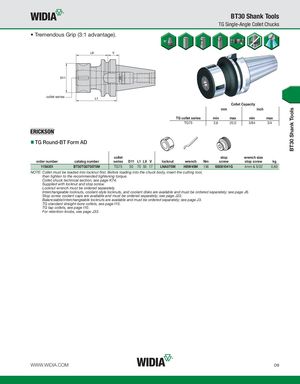

BT30 Shank Tools BT30 Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG Round-BT Form AD collet stop wrench size order number catalog number series D11 L1 L9 V locknut wrench Nm screw stop screw kg 1156351 BT30TG075075M TG75 50 75 55 17 LNA075M HSW45M 136 SS081041G 4mm & 5/32 0,60 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. WWW.WIDIA.COM D9
