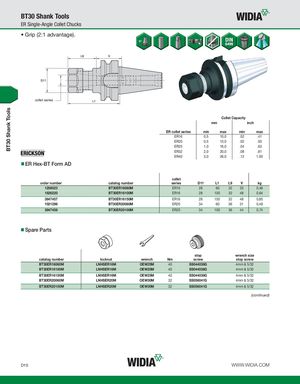

- Grip (2:1 advantage).
collet series
| m | Collet C m | apacity in | ch | |
| ER collet series | min | max | min | max |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 2,0 | 20,0 | .08 | .81 |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-BT Form AD
| order number | catalog number | collet series | D11 | L1 | L9 | V | kg |
| 1258023 | BT30ER16060M | ER16 | 28 | 60 | 32 | 33 | 0,48 |
| 1826220 | BT30ER16100M | ER16 | 28 | 100 | 32 | 48 | 0,64 |
| 3847457 | BT30ER16150M | ER16 | 28 | 150 | 32 | 48 | 0,85 |
| 1021296 | BT30ER20060M | ER20 | 34 | 60 | 36 | 31 | 0,49 |
| 3847458 | BT30ER20100M | ER20 | 34 | 100 | 36 | 44 | 0,74 |
Spare Parts
| catalog number | locknut | wrench | Nm | stop screw | wrench size stop screw |
| BT30ER16060M BT30ER16100M | LNHSER16M LNHSER16M | OEW25M OEW25M | 40 40 | SS044038G SS044038G | 4mm & 5/32 4mm & 5/32 |
| BT30ER16150M | LNHSER16M | OEW25M | 40 | SS044038G | 4mm & 5/32 |
| BT30ER20060M | LNHSER20M | OEW30M | 32 | SS056041G | 4mm & 5/32 |
| BT30ER20100M | LNHSER20M | OEW30M | 32 | SS056041G | 4mm & 5/32 |
(continued)
