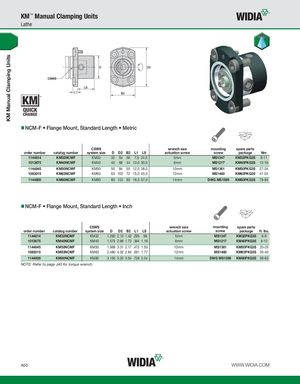

NCM-F • Flange Mount, Standard Length • Metric
| order number | catalog number | CSWS system size | D D | 2 | B2 | L1 LS | wrench size actuation screw | mounting screw | spare parts package | Nm |
| 1144814 | KM32NCMF | KM32 | 32 5 | 4 | 36 | 7,5 24,5 | 5mm | MS1347 | KM32PKG3S | 8-11 |
| 1013675 | KM40NCMF | KM40 | 40 6 | 8 | 44 | 10,0 30,0 | 6mm | MS1217 | KM40PKG3S | 12-16 |
| 1144845 | KM50NCMF | KM50 | 50 8 | 4 | 55 | 12,0 38,0 | 10mm | MS1361 | KM50PKG3S | 27-34 |
| 1083015 | KM63NCMF | KM63 | 63 10 | 2 | 72 | 15,0 45,0 | 12mm | MS1460 | KM63PKG3S | 47-54 |
| 1144800 | KM80NCMF | KM80 | 80 13 | 2 | 90 | 18,5 57,0 | 14mm | DWG MS1599 | KM80PKG3S | 79-85 |
NCM-F • Flange Mount, Standard Length • Inch
| order number | catalog number | CSWS system size | D D2 B2 L1 LS | wrench size actuation screw | mounting screw | spare parts package | ft. lbs. |
| 1144814 | KM32NCMF | KM32 | 1.260 2.13 1.42 .295 .96 | 5mm | MS1347 | KM32PKG3S | 6-8 |
| 1013675 | KM40NCMF | KM40 | 1.575 2.68 1.73 .394 1.18 | 6mm | MS1217 | KM40PKG3S | 9-12 |
| 1144845 | KM50NCMF | KM50 | 1.969 3.31 2.17 .472 1.50 | 10mm | MS1361 | KM50PKG3S | 20-25 |
| 1083015 | KM63NCMF | KM63 | 2.480 4.02 2.84 .591 1.77 | 12mm | MS1460 | KM63PKG3S | 35-40 |
| 1144800 | KM80NCMF | KM80 | 3.150 5.20 3.54 .728 2.24 | 14mm | DWG MS1599 | KM80PKG3S | 58-63 |
NOTE: Refer to page J40 for torque wrench.
