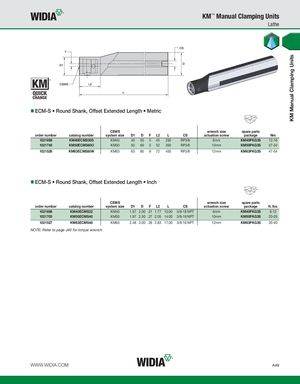

ECM-S • Round Shank, Offset Extended Length • Metric
| order number | catalog number | CSWS system size | D1 | D | F L2 | L | CS | wrench size actuation screw | spare parts package | Nm |
| 1021699 | KM40ECMS50S | KM40 | 40 | 50 | 5 45 | 250 | RP3/8 | 6mm | KM40PKG3S | 12-16 |
| 1021745 | KM50ECMS60U | KM50 | 50 | 60 | 5 52 | 350 | RP3/8 | 10mm | KM50PKG3S | 27-34 |
| 1021526 | KM63ECMS80W | KM63 | 63 | 80 | 8 72 | 450 | RP3/8 | 12mm | KM63PKG3S | 47-54 |
ECM-S • Round Shank, Offset Extended Length • Inch
| order number | catalog number | CSWS system size | D1 | D | F L2 | L | CS | wrench size actuation screw | spare parts package | ft. lbs. |
| 1021698 | KM40ECMS32 | KM40 | 1.57 | 2.00 | .21 1.77 | 10.00 | 3/8-18 NPT | 6mm | KM40PKG3S | 9-12 |
| 1021703 | KM50ECMS40 | KM50 | 1.97 | 2.50 | .27 2.05 | 14.00 | 3/8-18 NPT | 10mm | KM50PKG3S | 20-25 |
| 1021527 | KM63ECMS48 | KM63 | 2.48 | 3.00 | .26 2.83 | 17.00 | 3/8-18 NPT | 12mm | KM63PKG3S | 35-40 |
NOTE: Refer to page J40 for torque wrench.
