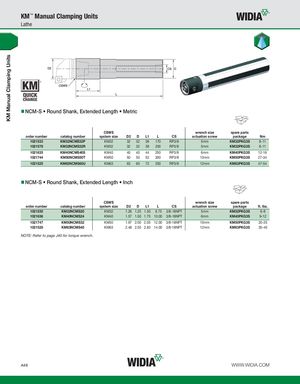

NCM-S • Round Shank, Extended Length • Metric
| order number | catalog number | CSWS system size | D2 | D | L1 | L | CS | wrench size actuation screw | spare parts package | Nm |
| 1021533 | KM32NCMS32P | KM32 | 32 | 32 | 38 | 170 | RP3/8 | 5mm | KM32PKG3S | 8-11 |
| 1021578 | KM32NCMS32R | KM32 | 32 | 32 | 38 | 200 | RP3/8 | 5mm | KM32PKG3S | 8-11 |
| 1021635 | KM40NCMS40S | KM40 | 40 | 40 | 44 | 250 | RP3/8 | 6mm | KM40PKG3S | 12-16 |
| 1021744 | KM50NCMS50T | KM50 | 50 | 50 | 52 | 300 | RP3/8 | 10mm | KM50PKG3S | 27-34 |
| 1021525 | KM63NCMS60U | KM63 | 63 | 60 | 72 | 350 | RP3/8 | 12mm | KM63PKG3S | 47-54 |
NCM-S • Round Shank, Extended Length • Inch
| order number | catalog number | CSWS system size | D2 | D | L1 | L | CS | wrench size actuation screw | spare parts package | ft. lbs. |
| 1021530 | KM32NCMS20 | KM32 | 1.26 | 1.25 | 1.50 | 6.75 | 3/8-18NPT | 5mm | KM32PKG3S | 6-8 |
| 1021636 | KM40NCMS24 | KM40 | 1.57 | 1.50 | 1.75 | 10.00 | 3/8-18NPT | 6mm | KM40PKG3S | 9-12 |
| 1021747 | KM50NCMS32 | KM50 | 1.97 | 2.00 | 2.05 | 12.00 | 3/8-18NPT | 10mm | KM50PKG3S | 20-25 |
| 1021528 | KM63NCMS40 | KM63 | 2.48 | 2.50 | 2.83 | 14.00 | 3/8-18NPT | 12mm | KM63PKG3S | 35-40 |
NOTE: Refer to page J40 for torque wrench.
