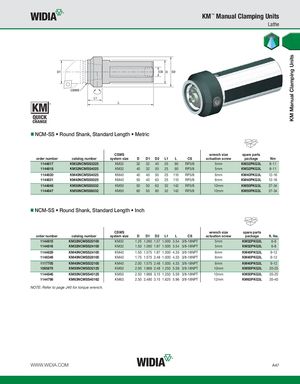

KM Manual Clamping Units KM™ Manual Clamping Units Lathe NCM-SS • Round Shank, Standard Length • Metric CSWS wrench size spare parts order number catalog number system size D D1 D2 L1 L CS actuation screw package Nm 1144817 KM32NCMSS3225 KM32 32 32 40 25 90 RP3/8 5mm KM32PKG3L 8-11 1144818 KM32NCMSS4025 KM32 40 32 50 25 90 RP3/8 5mm KM32PKG3L 8-11 1144830 KM40NCMSS4025 KM40 40 40 50 25 110 RP3/8 6mm KM40PKG3L 12-16 1144831 KM40NCMSS5025 KM40 50 40 63 25 110 RP3/8 6mm KM40PKG3L 12-16 1144848 KM50NCMSS5032 KM50 50 50 63 32 142 RP3/8 10mm KM50PKG3L 27-34 1144847 KM50NCMSS6032 KM50 60 50 80 32 142 RP3/8 10mm KM50PKG3L 27-34 NCM-SS • Round Shank, Standard Length • Inch CSWS wrench size spare parts order number catalog number system size D D1 D2 L1 L CS actuation screw package ft. lbs. 1144815 KM32NCMSS20100 KM32 1.25 1.260 1.57 1.000 3.54 3/8-18NPT 5mm KM32PKG3L 6-8 1144816 KM32NCMSS24100 KM32 1.50 1.260 1.97 1.000 3.54 3/8-18NPT 5mm KM32PKG3L 6-8 1144829 KM40NCMSS24100 KM40 1.50 1.575 1.97 1.000 4.33 3/8-18NPT 6mm KM40PKG3L 9-12 1148349 KM40NCMSS28100 KM40 1.75 1.575 2.48 1.000 4.33 3/8-18NPT 6mm KM40PKG3L 9-12 1117705 KM40NCMSS32100 KM40 2.00 1.575 2.48 1.000 4.33 3/8-18NPT 6mm KM40PKG3L 9-12 1085675 KM50NCMSS32125 KM50 2.00 1.969 2.48 1.250 5.59 3/8-18NPT 10mm KM50PKG3L 20-25 1144846 KM50NCMSS40125 KM50 2.50 1.969 3.15 1.250 5.59 3/8-18NPT 10mm KM50PKG3L 20-25 1144798 KM63NCMSS40162 KM63 2.50 2.480 3.15 1.625 5.96 3/8-18NPT 12mm KM63PKG3L 35-40 NOTE: Refer to page J40 for torque wrench. WWW.WIDIA.COM A47
