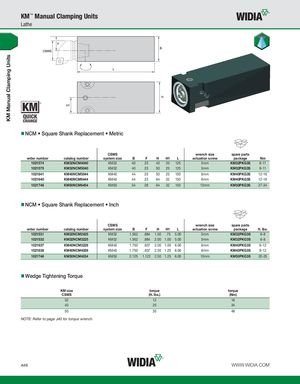

NCM • Square Shank Replacement • Metric
| order number | catalog number | CSWS system size | B | F | H | H1 | L | wrench size actuation screw | spare parts package | Nm |
| 1021574 | KM32NCM4040 | KM32 | 40 | 23 | 40 | 20 | 125 | 5mm | KM32PKG3S | 8-11 |
| 1021575 | KM32NCM5040 | KM32 | 40 | 23 | 50 | 25 | 125 | 5mm | KM32PKG3S | 8-11 |
| 1021641 | KM40NCM5044 | KM40 | 44 | 23 | 50 | 25 | 150 | 6mm | KM40PKG3S | 12-16 |
| 1021640 | KM40NCM6444 | KM40 | 44 | 23 | 64 | 32 | 150 | 6mm | KM40PKG3S | 12-16 |
| 1021748 | KM50NCM6454 | KM50 | 54 | 28 | 64 | 32 | 150 | 10mm | KM50PKG3S | 27-34 |
NCM • Square Shank Replacement • Inch
| order number | catalog number | CSWS system size | B | F | H | H1 | L | wrench size actuation screw | spare parts package | ft. lbs. |
| 1021531 | KM32NCM2425 | KM32 | 1.562 | .884 | 1.50 | .75 | 5.00 | 5mm | KM32PKG3S | 6-8 |
| 1021532 | KM32NCM3225 | KM32 | 1.562 | .884 | 2.00 | 1.00 | 5.00 | 5mm | KM32PKG3S | 6-8 |
| 1021637 | KM40NCM3228 | KM40 | 1.750 | .937 | 2.00 | 1.00 | 6.00 | 6mm | KM40PKG3S | 9-12 |
| 1021638 | KM40NCM4028 | KM40 | 1.750 | .937 | 2.50 | 1.25 | 6.00 | 6mm | KM40PKG3S | 9-12 |
| 1021746 | KM50NCM4034 | KM50 | 2.125 | 1.122 | 2.50 | 1.25 | 6.00 | 10mm | KM50PKG3S | 20-25 |
Wedge Tightening Torque
| KM size | torque | torque |
| CSWS | (ft. lbs.) | (Nm) |
| 32 | 12 | 16 |
| 40 | 25 | 34 |
| 50 | 35 | 48 |
NOTE: Refer to page J40 for torque wrench.
