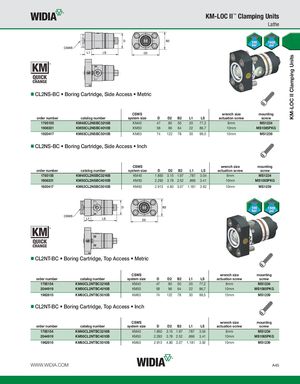

KM-LOC II Clamping Units KM-LOC II™ Clamping Units Lathe CL2NS-BC • Boring Cartridge, Side Access • Metric CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw 1785155 KM40CL2NSBC3216B KM40 47 80 50 20 77,2 8mm MS1234 1908331 KM50CL2NSBC4010B KM50 58 96 64 22 86,7 10mm MS1085PKG 1920417 KM63CL2NSBC5010B KM63 74 122 78 30 99,5 10mm MS1239 CL2NS-BC • Boring Cartridge, Side Access • Inch CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw 1785155 KM40CL2NSBC3216B KM40 1.850 3.15 1.97 .787 3.04 8mm MS1234 1908331 KM50CL2NSBC4010B KM50 2.293 3.78 2.52 .866 3.41 10mm MS1085PKG 1920417 KM63CL2NSBC5010B KM63 2.913 4.80 3.07 1.181 3.92 10mm MS1239 CL2NT-BC • Boring Cartridge, Top Access • Metric CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw 1785154 KM40CL2NTBC3216B KM40 47 80 50 20 77,2 8mm MS1234 2044919 KM50CL2NTBC4010B KM50 58 96 64 22 86,7 10mm MS1085PKG 1962610 KM63CL2NTBC5010B KM63 74 122 78 30 99,5 10mm MS1239 CL2NT-BC • Boring Cartridge, Top Access • Inch CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw 1785154 KM40CL2NTBC3216B KM40 1.850 3.15 1.97 .787 3.04 8mm MS1234 2044919 KM50CL2NTBC4010B KM50 2.293 3.78 2.52 .866 3.41 10mm MS1085PKG 1962610 KM63CL2NTBC5010B KM63 2.913 4.80 3.07 1.181 3.92 10mm MS1239 WWW.WIDIA.COM A45
