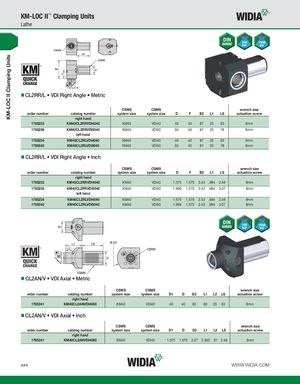

KM-LOC II Clamping Units KM-LOC II™ Clamping Units Lathe CL2RR/L • VDI Right Angle • Metric CSWS CSMS wrench size order number catalog number system size system size D F B2 L1 LS actuation screw right hand 1785233 KM40CL2RRVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785236 KM40CL2RRVDI5040 KM40 VDI50 50 40 87 25 78 8mm left hand 1785234 KM40CL2RLVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 50 40 87 25 78 8mm CL2RR/L • VDI Right Angle • Inch CSWS CSMS wrench size order number catalog number system size system size D F B2 L1 LS actuation screw right hand 1785233 KM40CL2RRVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785236 KM40CL2RRVDI5040 KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm left hand 1785234 KM40CL2RLVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm CL2AN/V • VDI Axial • Metric CSWS CSMS wrench size order number catalog number system size system size D1 D D2 L1 L2 LS actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 40 40 83 60 23 63 8mm CL2AN/V • VDI Axial • Inch CSWS CSMS wrench size order number catalog number system size system size D1 D D2 L1 L2 LS actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 1.575 1.575 3.27 2.362 .91 2.48 8mm A44 WWW.WIDIA.COM
