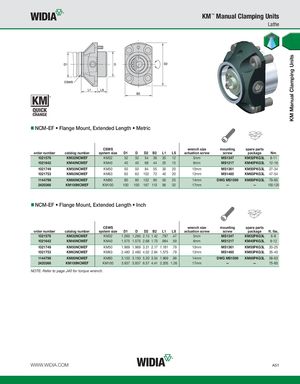

NCM-EF • Flange Mount, Extended Length • Metric
| order number | catalog number | CSWS system size | D1 | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw | spare parts package | Nm |
| 1021576 | KM32NCMEF | KM32 | 32 | 32 | 54 | 36 | 20 | 12 | 5mm | MS1347 | KM32PKG3L | 8-11 |
| 1021642 | KM40NCMEF | KM40 | 40 | 40 | 68 | 44 | 25 | 15 | 6mm | MS1217 | KM40PKG3L | 12-16 |
| 1021749 | KM50NCMEF | KM50 | 50 | 50 | 84 | 55 | 30 | 20 | 10mm | MS1361 | KM50PKG3L | 27-34 |
| 1021753 | KM63NCMEF | KM63 | 63 | 63 | 102 | 72 | 40 | 20 | 12mm | MS1460 | KM63PKG3L | 47-54 |
| 1144799 | KM80NCMEF | KM80 | 80 | 80 | 132 | 90 | 50 | 25 | 14mm | DWG MS1599 | KM80PKG3L | 79-85 |
| 2420366 | KM100NCMEF | KM100 | 100 | 100 | 167 | 112 | 56 | 32 | 17mm | — | — | 100-120 |
NCM-EF • Flange Mount, Extended Length • Inch
| order number | catalog number | CSWS system size | D1 | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw | spare parts package | ft. lbs. |
| 1021576 | KM32NCMEF | KM32 | 1.260 | 1.260 | 2.13 | 1.42 | .787 | .47 | 5mm | MS1347 | KM32PKG3L | 6-8 |
| 1021642 | KM40NCMEF | KM40 | 1.575 | 1.575 | 2.68 | 1.73 | .984 | .59 | 6mm | MS1217 | KM40PKG3L | 9-12 |
| 1021749 | KM50NCMEF | KM50 | 1.969 | 1.969 | 3.31 | 2.17 | 1.181 | .79 | 10mm | MS1361 | KM50PKG3L | 20-25 |
| 1021753 | KM63NCMEF | KM63 | 2.480 | 2.480 | 4.02 | 2.84 | 1.575 | .79 | 12mm | MS1460 | KM63PKG3L | 35-40 |
| 1144799 | KM80NCMEF | KM80 | 3.150 | 3.150 | 5.20 | 3.54 | 1.969 | .98 | 14mm | DWG MS1599 | KM80PKG3L | 58-63 |
| 2420366 | KM100NCMEF | KM100 | 3.937 | 3.937 | 6.57 | 4.41 | 2.205 | 1.26 | 17mm | — | — | 75-85 |
NOTE: Refer to page J40 for torque wrench.
