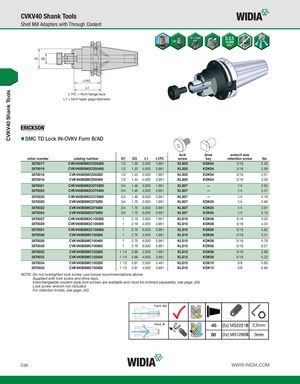

L1FC = from flange face L1 = from taper gage diameter
SMC TD Lock IN-CVKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | lock screw | drive key | wrench size retention screw | lbs |
| 3870017 | CVKV40BSM2C050200 | 1/2 | 1.20 | 2.000 | 1.961 | KLS05 | KDK04 | 3/16 | 2.46 |
| 3870019 | CVKV40BSM2C050400 | 1/2 | 1.20 | 4.000 | 3.961 | KLS05 | KDK04 | 3/16 | 2.99 |
| 3870016 | CVKV40BSMC050200 | 1/2 | 1.44 | 2.000 | 1.961 | KLS05 | KDK04 | 3/16 | 2.51 |
| 3870018 | CVKV40BSMC050400 | 1/2 | 1.44 | 4.000 | 3.961 | KLS05 | KDK04 | 3/16 | 3.30 |
| 3870021 | CVKV40BSM2C075200 | 3/4 | 1.46 | 2.000 | 1.961 | KLS07 | — | 1/4 | 2.55 |
| 3870023 | CVKV40BSM2C075400 | 3/4 | 1.46 | 4.000 | 3.961 | KLS07 | — | 1/4 | 3.37 |
| 3870025 | CVKV40BSM2C075600 | 3/4 | 1.46 | 6.000 | 5.961 | KLS07 | — | 1/4 | 4.19 |
| 3870020 | CVKV40BSMC075200 | 3/4 | 1.75 | 2.000 | 1.961 | KLS07 | KDK05 | 1/4 | 2.68 |
| 3870022 | CVKV40BSMC075400 | 3/4 | 1.75 | 4.000 | 3.961 | KLS07 | KDK05 | 1/4 | 3.91 |
| 3870024 | CVKV40BSMC075600 | 3/4 | 1.75 | 6.000 | 5.961 | KLS07 | KDK05 | 1/4 | 5.15 |
| 3870027 | CVKV40BSM2C100200 | 1 | 2.19 | 2.000 | 1.961 | KLS10 | KDK06 | 5/16 | 3.00 |
| 3870029 | CVKV40BSM2C100400 | 1 | 2.19 | 4.000 | 3.961 | KLS10 | KDK06 | 5/16 | 4.33 |
| 3870031 | CVKV40BSM2C100600 | 1 | 2.19 | 6.000 | 5.961 | KLS10 | KDK06 | 5/16 | 5.62 |
| 3870026 | CVKV40BSMC100200 | 1 | 2.75 | 2.000 | 1.961 | KLS10 | KDK06 | 5/16 | 3.31 |
| 3870028 | CVKV40BSMC100400 | 1 | 2.75 | 4.000 | 3.961 | KLS10 | KDK06 | 5/16 | 4.78 |
| 3870030 | CVKV40BSMC100600 | 1 | 2.75 | 6.000 | 5.961 | KLS10 | KDK06 | 5/16 | 6.07 |
| 3870032 | CVKV40BSMC125200 | 1 1/4 | 2.88 | 2.000 | 1.961 | KLS12 | KDK08 | 5/16 | 3.98 |
| 3870033 | CVKV40BSMC125400 | 1 1/4 | 2.88 | 4.000 | 3.961 | KLS12 | KDK08 | 5/16 | 5.22 |
| 3870034 | CVKV40BSMC150250 | 1 1/2 | 3.81 | 2.500 | 2.461 | KLS15 | KDK10 | 3/8 | 5.60 |
| 3870035 | CVKV40BSMC150400 | 1 1/2 | 3.81 | 4.000 | 3.961 | KLS15 | KDK10 | 3/8 | 6.86 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knobs, see page J33.
