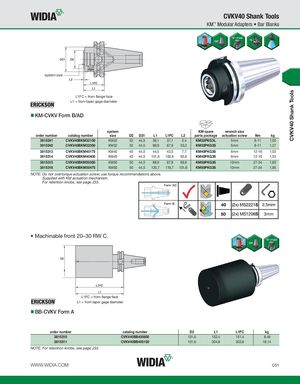

CVKV40 Shank Tools CVKV40 Shank Tools KM™ Modular Adapters • Bar Blanks system size L1FC = from flange face L1 = from taper gage diameter KM-CVKV Form B/AD system KM spare wrench size order number catalog number size D2 D21 L1 L1FC L2 parts package actuation screw Nm kg 3815241 CVKV40BKM32150 KM32 32 44,5 38,1 37,1 2,4 KM32PKG3L 5mm 8-11 1,00 3815242 CVKV40BKM32350 KM32 32 44,5 88,9 87,9 53,2 KM32PKG3S 5mm 8-11 1,27 3815313 CVKV40BKM40175 KM40 40 44,5 44,5 43,5 7,7 KM40PKG3S 6mm 12-16 1,03 3815314 CVKV40BKM40400 KM40 40 44,5 101,6 100,6 65,9 KM40PKG3S 6mm 12-16 1,53 3815315 CVKV40BKM50350 KM50 50 44,5 88,9 87,9 69,9 KM50PKG3S 10mm 27-34 1,60 3815316 CVKV40BKM50475 KM50 50 44,5 120,7 119,7 101,6 KM50PKG3S 10mm 27-34 1,95 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. For retention knobs, see page J33. • Machinable front 20–30 RW C. L1FC = from flange face L1 = from taper gage diameter BB-CVKV Form A order number catalog number D2 L1 L1FC kg 3815310 CVKV40BB400600 101,6 152,4 151,4 8,46 3815311 CVKV40BB400120 101,6 304,8 303,8 18,14 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM C51
