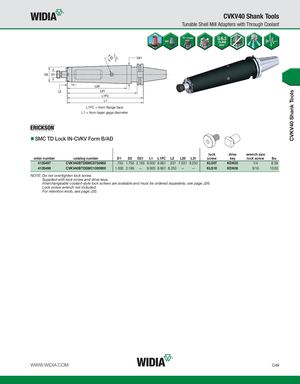

CVKV40 Shank Tools CVKV40 Shank Tools Tunable Shell Mill Adapters with Through Coolant L1FC = from flange face L1 = from taper gage diameter SMC TD Lock IN-CVKV Form B/AD lock drive wrench size order number catalog number D1 D2 D21 L1 L1FC L2 L20 L21 screw key lock screw lbs 4135497 CVKV40BTDSMC0750900 .750 1.750 2.165 9.000 8.961 .531 7.031 8.250 KLS07 KDK05 1/4 8.39 4135498 CVKV40BTDSMC1000900 1.000 2.189 — 9.000 8.961 8.250 — — KLS10 KDK06 5/16 10.03 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knob, see page J33. WWW.WIDIA.COM C49
