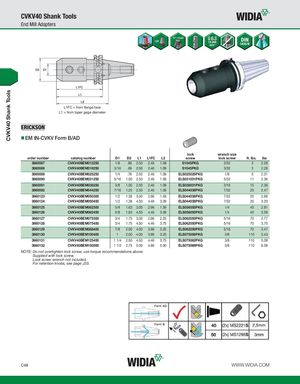

Каталог Widia инструментальная оснастка - страница 588
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
L1FC = from flange face L1 = from taper gage diameter
EM IN-CVKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | L2 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 3860087 | CVKV40BEM012250 | 1/8 | .69 | 2.50 | 2.46 | 1.09 | S1045PKG | 3/32 | 3 | 2.28 |
| 3860088 | CVKV40BEM018250 | 3/16 | .69 | 2.50 | 2.46 | 1.09 | S1045PKG | 3/32 | 3 | 2.28 |
| 3860089 | CVKV40BEM025250 | 1/4 | .78 | 2.50 | 2.46 | 1.09 | ELS025025PKG | 1/8 | 5 | 2.31 |
| 3860090 | CVKV40BEM031250 | 5/16 | 1.00 | 2.50 | 2.46 | 1.09 | ELS031031PKG | 5/32 | 11 | 2.36 |
| 3860091 | CVKV40BEM038250 | 3/8 | 1.00 | 2.50 | 2.46 | 1.09 | ELS038031PKG | 3/16 | 15 | 2.36 |
| 3860092 | CVKV40BEM044250 | 7/16 | 1.25 | 2.50 | 2.46 | 1.09 | ELS044038PKG | 7/32 | 20 | 2.47 |
| 3860123 | CVKV40BEM050300 | 1/2 | 1.38 | 3.00 | 2.96 | 1.59 | ELS044038PKG | 7/32 | 20 | 2.66 |
| 3860124 | CVKV40BEM050450 | 1/2 | 1.38 | 4.50 | 4.46 | 3.09 | ELS044038PKG | 7/32 | 20 | 3.20 |
| 3860125 | CVKV40BEM062300 | 5/8 | 1.63 | 3.00 | 2.96 | 1.59 | ELS056050PKG | 1/4 | 40 | 2.81 |
| 3860126 | CVKV40BEM062450 | 5/8 | 1.63 | 4.50 | 4.46 | 3.09 | ELS056050PKG | 1/4 | 40 | 3.59 |
| 3860127 | CVKV40BEM075300 | 3/4 | 1.75 | 3.00 | 2.96 | 2.25 | ELS062050PKG | 5/16 | 70 | 2.77 |
| 3860128 | CVKV40BEM075450 | 3/4 | 1.75 | 4.50 | 4.46 | 3.75 | ELS062050PKG | 5/16 | 70 | 3.70 |
| 3860129 | CVKV40BEM088400 | 7/8 | 2.00 | 4.00 | 3.96 | 3.25 | ELS062050PKG | 5/16 | 70 | 3.47 |
| 3860130 | CVKV40BEM100400 | 1 | 2.00 | 4.00 | 3.96 | 3.25 | ELS075056PKG | 3/8 | 110 | 3.43 |
| 3860131 | CVKV40BEM125450 | 1 1/4 | 2.50 | 4.50 | 4.46 | 3.75 | ELS075062PKG | 3/8 | 110 | 5.09 |
| 3860132 | CVKV40BEM150500 | 1 1/2 | 2.75 | 5.00 | 4.96 | 5.00 | ELS075069PKG | 3/8 | 110 | 6.08 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
