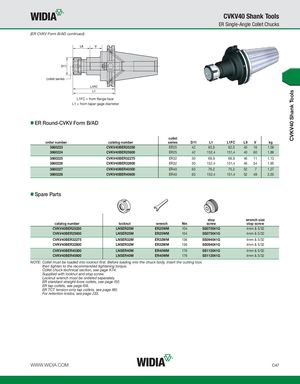

CVKV40 Shank Tools CVKV40 Shank Tools ER Single-Angle Collet Chucks (ER CVKV Form B/AD continued) collet series L1FC = from flange face L1 = from taper gage diameter ER Round-CVKV Form B/AD collet order number catalog number series D11 L1 L1FC L9 V kg 3860223 CVKV40BER25250 ER25 42 63,5 62,5 40 16 1,09 3860224 CVKV40BER25600 ER25 42 152,4 151,4 40 60 1,89 3860225 CVKV40BER32275 ER32 50 69,9 68,9 46 11 1,13 3860226 CVKV40BER32600 ER32 50 152,4 151,4 46 54 1,95 3860227 CVKV40BER40300 ER40 63 76,2 75,2 52 7 1,27 3860228 CVKV40BER40600 ER40 63 152,4 151,4 52 48 2,03 Spare Parts stop wrench size catalog number locknut wrench Nm screw stop screw CVKV40BER25250 LNSER25M ER25WM 104 SS075041G 4mm & 5/32 CVKV40BER25600 LNSER25M ER25WM 104 SS075041G 4mm & 5/32 CVKV40BER32275 LNSER32M ER32WM 136 SS094041G 4mm & 5/32 CVKV40BER32600 LNSER32M ER32WM 136 SS094041G 4mm & 5/32 CVKV40BER40300 LNSER40M ER40WM 176 SS112041G 4mm & 5/32 CVKV40BER40600 LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. WWW.WIDIA.COM C47
