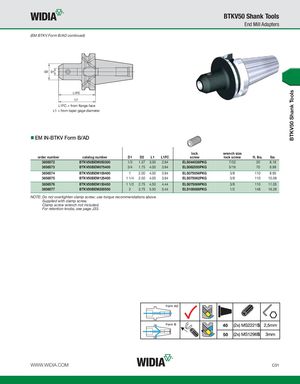

(EM BTKV Form B/AD continued)
L1FC = from flange face L1 = from taper gage diameter
EM IN-BTKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 3856572 | BTKV50BEM050300 | 1/2 | 1.37 | 3.00 | 2.94 | ELS044038PKG | 7/32 | 20 | 8.18 |
| 3856573 | BTKV50BEM075400 | 3/4 | 1.75 | 4.00 | 3.94 | ELS062050PKG | 5/16 | 70 | 8.99 |
| 3856574 | BTKV50BEM100400 | 1 | 2.00 | 4.00 | 3.94 | ELS075056PKG | 3/8 | 110 | 8.95 |
| 3856575 | BTKV50BEM125400 | 1 1/4 | 2.50 | 4.00 | 3.94 | ELS075062PKG | 3/8 | 110 | 10.08 |
| 3856576 | BTKV50BEM150450 | 1 1/2 | 2.75 | 4.50 | 4.44 | ELS075069PKG | 3/8 | 110 | 11.05 |
| 3856577 | BTKV50BEM200550 | 2 | 3.75 | 5.50 | 5.44 | ELS100088PKG | 1/2 | 148 | 16.28 |
NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. For retention knobs, see page J33.
