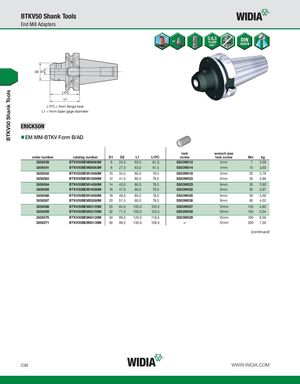

BTKV50 Shank Tools BTKV50 Shank Tools End Mill Adapters L1FC = from flange face L1 = from taper gage diameter EM MM-BTKV Form B/AD lock wrench size order number catalog number D1 D2 L1 L1FC screw lock screw Nm kg 3856539 BTKV50BEM06063M 6 24,5 63,0 61,5 SS03M012 3mm 7 3,58 3856541 BTKV50BEM08063M 8 27,5 63,0 61,5 SS03M014 4mm 15 3,60 3856542 BTKV50BEM10080M 10 34,5 80,0 78,5 SS03M018 5mm 25 3,79 3856563 BTKV50BEM12080M 12 41,5 80,0 78,5 SS03M023 6mm 35 3,86 3856564 BTKV50BEM14080M 14 43,5 80,0 78,5 SS03M023 6mm 35 3,90 3856565 BTKV50BEM16080M 16 47,5 80,0 78,5 SS03M025 6mm 50 3,97 3856566 BTKV50BEM18080M 18 49,5 80,0 78,5 SS03M025 6mm 50 4,00 3856567 BTKV50BEM20080M 20 51,5 80,0 78,5 SS03M026 8mm 95 4,02 3856568 BTKV50BEM25105M 25 64,5 105,0 103,5 SS03M027 10mm 135 4,80 3856569 BTKV50BEM32105M 32 71,5 105,0 103,5 SS03M029 10mm 160 5,04 3856570 BTKV50BEM40120M 40 89,5 120,0 118,5 SS03M029 10mm 160 6,56 3856571 BTKV50BEM50130M 50 99,5 130,0 128,5 — 12mm 200 7,50 (continued) C30 WWW.WIDIA.COM
