L1FC = from flange face L1 = from taper gage diameter

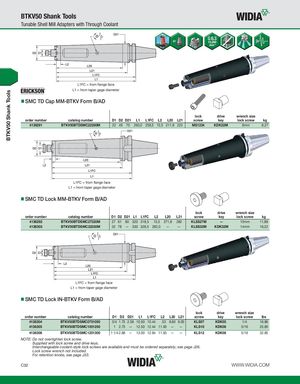

SMC TD Cap MM-BTKV Form B/AD
lock drive wrench size
| order number | catalog number | D1 D2 D21 | L1 | L1FC | L2 | L20 | L21 | screw | key | lock screw | kg | |||||
| 4136291 | BTKV50BTDSMC22260M | 22 49 | 70 | 260,0 258,5 13,5 211,8 222 | MS1234 | KDK22M | 8mm | 8,27 |
L1FC = from flange face L1 = from taper gage diameter
SMC TD Lock MM-BTKV Form B/AD
lock drive wrench size
| order number | catalog number | D1 D2 D21 L1 | L1FC | L2 | L20 | L21 | screw | key | lock screw | kg | |||||
| 4136292 | BTKV50BTDSMC27320M | 27 61 | 80 320 318,5 | 13,5 | 271,8 | 282 | KLSS27M | — | 10mm | 11,89 | |||||
| 4136303 | BTKV50BTDSMC32330M | 32 78 | — | 330 328,5 292,0 | — | — | KLSS32M | KDK32M | 14mm | 16,22 |
L1FC = from flange face L1 = from taper gage diameter
SMC TD Lock IN-BTKV Form B/AD
| order number | catalog number | D1 D2 | D21 | L1 | L1FC | L2 | L20 L21 | lock screw | drive key | wrench size lock screw | lbs |
| 4136304 | BTKV50BTDSMC0751050 | 3/4 1.75 | 2.56 | 10.50 | 10.44 | .53 | 8.60 9.00 | KLS07 | KDK05 | 1/4 | 16.86 |
| 4136305 | BTKV50BTDSMC1001250 | 1 2.75 | — | 12.50 | 12.44 | 11.00 | — — | KLS10 | KDK06 | 5/16 | 25.60 |
| 4136306 | BTKV50BTDSMC1251300 | 1 1/4 2.88 | — | 13.00 | 12.94 | 11.50 | — — | KLS12 | KDK08 | 5/16 | 32.85 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included.
