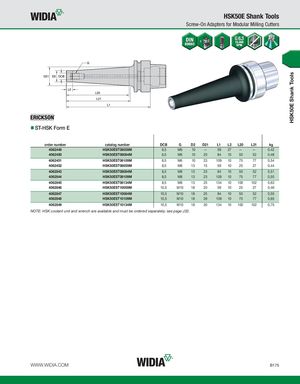

HSK50E Shank Tools HSK50E Shank Tools Screw-On Adapters for Modular Milling Cutters ST-HSK Form E order number catalog number DCB G D2 D21 L1 L2 L20 L21 kg 4062449 HSK50EST06059M 6,5 M6 10 — 59 27 — — 0,42 4062450 HSK50EST06084M 6,5 M6 10 20 84 10 50 52 0,48 4062451 HSK50EST06109M 6,5 M6 10 23 109 10 75 77 0,54 4062452 HSK50EST08059M 8,5 M8 13 15 59 10 25 27 0,44 4062843 HSK50EST08084M 8,5 M8 13 23 84 10 50 52 0,51 4062844 HSK50EST08109M 8,5 M8 13 23 109 10 75 77 0,55 4062845 HSK50EST08134M 8,5 M8 13 25 134 10 100 102 0,63 4062846 HSK50EST10059M 10,5 M10 18 20 59 10 25 27 0,46 4062847 HSK50EST10084M 10,5 M10 18 25 84 10 50 52 0,55 4062848 HSK50EST10109M 10,5 M10 18 28 109 10 75 77 0,65 4062849 HSK50EST10134M 10,5 M10 18 30 134 10 100 102 0,75 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B175
