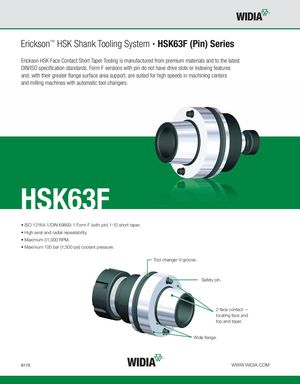

Erickson™ HSK Shank Tooling System • HSK63F (Pin) Series Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO specification standards. Form F versions with pin do not have drive slots or indexing features and, with their greater flange surface area support, are suited for high speeds in machining centers and milling machines with automatic tool changers. HSK63F • ISO 12164-1/DIN 69893-1 Form F (with pin) 1:10 short taper. • High axial and radial repeatability. • Maximum 31,000 RPM. • Maximum 100 bar (1,500 psi) coolant pressure. Tool changer V-groove. Safety pin. 2-face contact — locating face and top and taper. Wide flange. B176 WWW.WIDIA.COM
