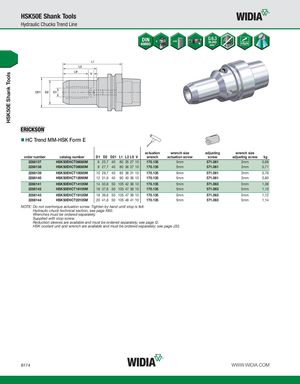

HC Trend MM-HSK Form E
| order number | catalog number | D1 D2 | D2 | 1 L1 L2 L9 V | actuation wrench | wrench size actuation screw | adjusting screw | wrench size adjusting screw | kg |
| 2288137 | HSK50EHCT06080M | 6 25,7 | 40 | 80 35 27 10 | 170.135 | 5mm | 571.061 | 3mm | 0,69 |
| 2288138 | HSK50EHCT08080M | 8 27,7 | 40 | 80 36 27 10 | 170.135 | 5mm | 571.061 | 3mm | 0,71 |
| 2288139 | HSK50EHCT10085M | 10 29,7 | 40 | 85 38 31 10 | 170.135 | 5mm | 571.061 | 3mm | 0,76 |
| 2288140 | HSK50EHCT12090M | 12 31,6 | 40 | 90 40 36 10 | 170.135 | 5mm | 571.061 | 3mm | 0,80 |
| 2288141 | HSK50EHCT14105M | 14 33,6 | 50 | 105 42 36 10 | 170.135 | 5mm | 571.063 | 5mm | 1,06 |
| 2288142 | HSK50EHCT16105M | 16 37,6 | 50 | 105 47 39 10 | 170.135 | 5mm | 571.063 | 5mm | 1,10 |
| 2288143 | HSK50EHCT18105M | 18 39,6 | 50 | 105 47 39 10 | 170.135 | 5mm | 571.063 | 5mm | 1,12 |
| 2288144 | HSK50EHCT20105M | 20 41,6 | 50 | 105 48 41 10 | 170.135 | 5mm | 571.063 | 5mm | 1,14 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Wrenches must be ordered separately. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
