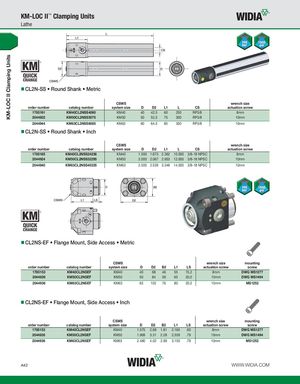

CL2N-SS • Round Shank • Metric
CSWS wrench size
| order number | catalog number | system size | D | D2 | L1 | L | CS | actuation screw | |||
| 1785191 | KM40CL2NSS4060 | KM40 | 40 | 42,5 | 60 | 250 | RP3/8 | 8mm | |||
| 2044932 | KM50CL2NSS5075 | KM50 | 50 | 52,5 | 75 | 300 | RP3/8 | 10mm | |||
| 2044944 | KM63CL2NSS6085 | KM63 | 60 | 64,5 | 85 | 350 | RP3/8 | 10mm |
CL2N-SS • Round Shank • Inch
CSWS wrench size
order number catalog number system size D D2 L1 L CS actuation screw
| 1785185 | KM40CL2NSS24236 | KM40 | 1.500 1.673 2.362 | 10.000 | 3/8-18 NPSC | 8mm |
| 2044924 | KM50CL2NSS32295 | KM50 | 2.000 2.067 2.953 | 12.000 | 3/8-18 NPSC | 10mm |
| 2044940 | KM63CL2NSS40335 | KM63 | 2.500 2.539 3.346 | 14.000 | 3/8-18 NPSC | 10mm |
CL2NS-EF • Flange Mount, Side Access • Metric
| order number | catalog number | CSWS system size | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw |
| 1785153 | KM40CL2NSEF | KM40 | 40 | 68 | 46 | 55 | 15,2 | 8mm | DWG MS1277 |
| 2044926 | KM50CL2NSEF | KM50 | 50 | 84 | 58 | 65 | 20,0 | 10mm | DWG MS1494 |
| 2044936 | KM63CL2NSEF | KM63 | 63 | 102 | 76 | 80 | 20,0 | 10mm | MS1252 |
CL2NS-EF • Flange Mount, Side Access • Inch
| order number | catalog number | CSWS system size | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw |
| 1785153 | KM40CL2NSEF | KM40 | 1.575 | 2.68 | 1.81 | 2.165 | .60 | 8mm | DWG MS1277 |
| 2044926 | KM50CL2NSEF | KM50 | 1.969 | 3.31 | 2.28 | 2.559 | .79 | 10mm | DWG MS1494 |
| 2044936 | KM63CL2NSEF | KM63 | 2.480 | 4.02 | 2.99 | 3.150 | .79 | 10mm | MS1252 |
