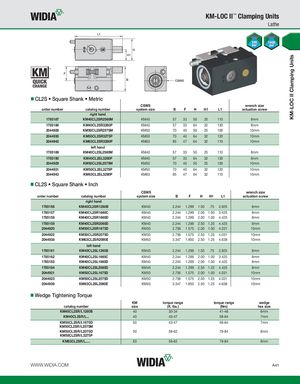

KM-LOC II Clamping Units KM-LOC II™ Clamping Units Lathe CL2S • Square Shank • Metric CSWS wrench size order number catalog number system size B F H H1 L1 actuation screw right hand 1785187 KM40CL2SR2560M KM40 57 33 50 25 110 8mm 1785188 KM40CL2SR3260P KM40 57 33 64 32 130 8mm 2044928 KM50CL2SR2575M KM50 70 40 50 25 100 10mm 2044930 KM50CL2SR3275P KM50 70 40 64 32 120 10mm 2044942 KM63CL2SR3290P KM63 85 47 64 32 110 10mm left hand 1785189 KM40CL2SL2560M KM40 57 33 50 25 110 8mm 1785190 KM40CL2SL3260P KM40 57 33 64 32 130 8mm 2044929 KM50CL2SL2575M KM50 70 40 50 25 100 10mm 2044931 KM50CL2SL3275P KM50 70 40 64 32 120 10mm 2044943 KM63CL2SL3290P KM63 85 47 64 32 110 10mm CL2S • Square Shank • Inch CSWS wrench size order number catalog number system size B F H H1 L1 actuation screw right hand 1785156 KM40CL2SR1260B KM40 2.244 1.299 1.50 .75 2.925 8mm 1785157 KM40CL2SR1660C KM40 2.244 1.299 2.00 1.00 3.425 8mm 1785158 KM40CL2SR1660D KM40 2.244 1.299 2.00 1.00 4.425 8mm 1785159 KM40CL2SR2060D KM40 2.244 1.299 2.50 1.25 4.425 8mm 2044920 KM50CL2SR1675D KM50 2.756 1.575 2.00 1.00 4.031 10mm 2044922 KM50CL2SR2075D KM50 2.756 1.575 2.50 1.25 4.031 10mm 2044938 KM63CL2SR2090E KM63 3.347 1.850 2.50 1.25 4.638 10mm left hand 1785161 KM40CL2SL1260B KM40 2.244 1.299 1.50 .75 2.925 8mm 1785162 KM40CL2SL1660C KM40 2.244 1.299 2.00 1.00 3.425 8mm 1785183 KM40CL2SL1660D KM40 2.244 1.299 2.00 1.00 4.425 8mm 1785184 KM40CL2SL2060D KM40 2.244 1.299 2.50 1.25 4.425 8mm 2044921 KM50CL2SL1675D KM50 2.756 1.575 2.00 1.00 4.031 10mm 2044923 KM50CL2SL2075D KM50 2.756 1.575 2.50 1.25 4.031 10mm 2044939 KM63CL2SL2090E KM63 3.347 1.850 2.50 1.25 4.638 10mm Wedge Tightening Torque KM torque range torque range wedge catalog number size (ft. lbs.) (Nm) hex size KM40CL2SR/L1260B 40 30-34 41-46 6mm KM40CL2SR/L... 40 43-47 58-64 7mm KM50CL2SR/L1675D 50 43-47 58-64 7mm KM50CL2SR/L2575M KM50CL2SR/L2075D 50 58-62 79-84 8mm KM50CL2SR/L3275P KM63CL2SR/L..... 63 58-62 79-84 8mm WWW.WIDIA.COM A41
