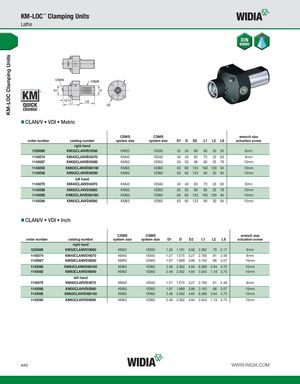

KM-LOC Clamping Units KM-LOC™ Clamping Units Lathe CLAN/V • VDI • Metric CSWS CSMS wrench size order number catalog number system size system size D1 D D2 L1 L2 LS actuation screw right hand 1228680 KM32CLANVDI3060 KM32 VDI30 32 30 68 60 20 55 6mm 1145074 KM40CLANVDI4070 KM40 VDI40 40 40 83 70 23 63 8mm 1145067 KM50CLANVDI5080 KM50 VDI50 50 50 98 80 25 78 10mm 1145093 KM63CLANVDI60160 KM63 VDI60 63 60 123 160 100 94 10mm 1145092 KM63CLANVDI6090 KM63 VDI60 63 60 123 90 30 94 10mm left hand 1145075 KM40CLAVVDI4070 KM40 VDI40 40 40 83 70 23 63 8mm 1145068 KM50CLAVVDI5080 KM50 VDI50 50 50 98 80 25 78 10mm 1145095 KM63CLAVVDI60160 KM63 VDI60 63 60 123 160 100 94 10mm 1145094 KM63CLAVVDI6090 KM63 VDI60 63 60 123 90 30 94 10mm CLAN/V • VDI • Inch CSWS CSMS wrench size order number catalog number system size system size D1 D D2 L1 L2 LS actuation screw right hand 1228680 KM32CLANVDI3060 KM32 VDI30 1.26 1.181 2.68 2.362 .79 2.17 6mm 1145074 KM40CLANVDI4070 KM40 VDI40 1.57 1.575 3.27 2.756 .91 2.48 8mm 1145067 KM50CLANVDI5080 KM50 VDI50 1.97 1.969 3.86 3.150 .98 3.07 10mm 1145093 KM63CLANVDI60160 KM63 VDI60 2.48 2.362 4.84 6.299 3.94 3.70 10mm 1145092 KM63CLANVDI6090 KM63 VDI60 2.48 2.362 4.84 3.543 1.18 3.70 10mm left hand 1145075 KM40CLAVVDI4070 KM40 VDI40 1.57 1.575 3.27 2.756 .91 2.48 8mm 1145068 KM50CLAVVDI5080 KM50 VDI50 1.97 1.969 3.86 3.150 .98 3.07 10mm 1145095 KM63CLAVVDI60160 KM63 VDI60 2.48 2.362 4.84 6.299 3.94 3.70 10mm 1145094 KM63CLAVVDI6090 KM63 VDI60 2.48 2.362 4.84 3.543 1.18 3.70 10mm A40 WWW.WIDIA.COM
