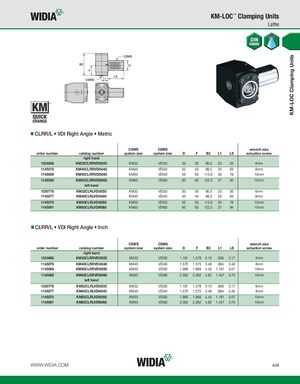

CLRR/L • VDI Right Angle • Metric
| order number | catalog number | CSWS system size | CSMS system size | D | F | B2 | L1 LS | wrench size actuation screw |
| right hand | ||||||||
| 1324688 | KM32CLRRVDI3035 | KM32 | VDI30 | 30 | 35 | 80,0 | 23 55 | 6mm |
| 1145076 | KM40CLRRVDI4040 | KM40 | VDI40 | 40 | 40 | 88,5 | 25 63 | 8mm |
| 1145069 | KM50CLRRVDI5050 | KM50 | VDI50 | 50 | 50 | 113,0 | 30 78 | 10mm |
| 1145089 | KM63CLRRVDI6060 | KM63 | VDI60 | 60 | 60 | 122,5 | 37 94 | 10mm |
| left hand | ||||||||
| 1330776 | KM32CLRLVDI3035 | KM32 | VDI30 | 30 | 35 | 80,0 | 23 55 | 6mm |
| 1145077 | KM40CLRLVDI4040 | KM40 | VDI40 | 40 | 40 | 88,5 | 25 63 | 8mm |
| 1145070 | KM50CLRLVDI5050 | KM50 | VDI50 | 50 | 50 | 113,0 | 30 78 | 10mm |
| 1145091 | KM63CLRLVDI6060 | KM63 | VDI60 | 60 | 60 | 122,5 | 37 94 | 10mm |
CLRR/L • VDI Right Angle • Inch
| order number | catalog number | CSWS system size | CSMS system size | D | F | B2 | L1 | LS | wrench size actuation screw |
| right hand | |||||||||
| 1324688 | KM32CLRRVDI3035 | KM32 | VDI30 | 1.181 | 1.378 | 3.15 | .906 | 2.17 | 6mm |
| 1145076 | KM40CLRRVDI4040 | KM40 | VDI40 | 1.575 | 1.575 | 3.48 | .984 | 2.48 | 8mm |
| 1145069 | KM50CLRRVDI5050 | KM50 | VDI50 | 1.969 | 1.969 | 4.45 | 1.181 | 3.07 | 10mm |
| 1145089 | KM63CLRRVDI6060 | KM63 | VDI60 | 2.362 | 2.362 | 4.82 | 1.457 | 3.70 | 10mm |
| left hand | |||||||||
| 1330776 | KM32CLRLVDI3035 | KM32 | VDI30 | 1.181 | 1.378 | 3.15 | .906 | 2.17 | 6mm |
| 1145077 | KM40CLRLVDI4040 | KM40 | VDI40 | 1.575 | 1.575 | 3.48 | .984 | 2.48 | 8mm |
| 1145070 | KM50CLRLVDI5050 | KM50 | VDI50 | 1.969 | 1.969 | 4.45 | 1.181 | 3.07 | 10mm |
| 1145091 | KM63CLRLVDI6060 | KM63 | VDI60 | 2.362 | 2.362 | 4.82 | 1.457 | 3.70 | 10mm |
