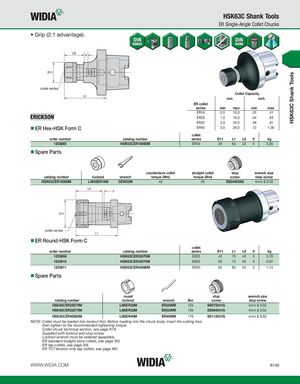

HSK63C Shank Tools HSK63C Shank Tools ER Single-Angle Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER Hex-HSK Form C ER40 3,0 26,0 .12 1.00 collet order number catalog number series D11 L1 L9 V kg 1253865 HSK63CER16060M ER16 28 60 32 5 0,55 Spare Parts counterbore collet straight collet stop wrench size catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw HSK63CER16060M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 L9 V D11 collet series L1 ER Round-HSK Form C collet order number catalog number series D11 L1 L9 V kg 1253908 HSK63CER25070M ER25 42 70 40 5 0,78 1253910 HSK63CER32075M ER32 50 75 45 5 0,97 1253911 HSK63CER40080M ER40 63 80 54 3 1,14 Spare Parts round stop wrench size catalog number locknut wrench Nm screw stop screw HSK63CER25070M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 HSK63CER32075M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 HSK63CER40080M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. WWW.WIDIA.COM B159
