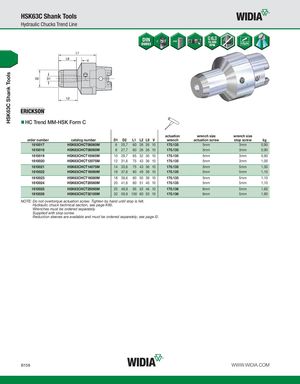

HC Trend MM-HSK Form C
| order number | catalog number | D1 | D2 | L1 L2 L9 V | actuation wrench | wrench size actuation screw | wrench size stop screw | kg |
| 1810017 | HSK63CHCT06060M | 6 | 25,7 | 60 26 26 10 | 170.135 | 5mm | 3mm | 0,90 |
| 1810018 | HSK63CHCT08060M | 8 | 27,7 | 60 26 26 10 | 170.135 | 5mm | 3mm | 0,90 |
| 1810019 | HSK63CHCT10065M | 10 | 29,7 | 65 32 30 10 | 170.135 | 5mm | 3mm | 0,90 |
| 1810020 | HSK63CHCT12075M | 12 | 31,6 | 75 43 36 10 | 170.135 | 5mm | 3mm | 1,00 |
| 1810021 | HSK63CHCT14075M | 14 | 33,6 | 75 43 36 10 | 170.135 | 5mm | 5mm | 1,00 |
| 1810022 | HSK63CHCT16080M | 16 | 37,6 | 80 49 39 10 | 170.135 | 5mm | 5mm | 1,10 |
| 1810023 | HSK63CHCT18080M | 18 | 39,6 | 80 50 39 10 | 170.135 | 5mm | 5mm | 1,10 |
| 1810024 | HSK63CHCT20080M | 20 | 41,6 | 80 51 40 10 | 170.135 | 5mm | 5mm | 1,10 |
| 1810025 | HSK63CHCT25095M | 25 | 49,9 | 95 52 46 10 | 170.136 | 6mm | 5mm | 1,60 |
| 1810026 | HSK63CHCT32100M | 32 | 59,9 | 100 60 50 10 | 170.136 | 6mm | 5mm | 1,90 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Wrenches must be ordered separately. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2.
