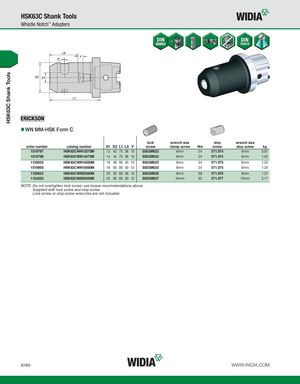

WN MM-HSK Form C
| order number | catalog number | D1 D2 L1 L9 V | lock screw | wrench size clamp screw | Nm | stop screw | wrench size stop screw | kg |
| 1519797 | HSK63CWN12075M | 12 42 75 36 10 | SS03M023 | 6mm | 24 | 571.074 | 6mm | 0,97 |
| 1519798 | HSK63CWN14075M | 14 44 75 36 10 | SS03M023 | 6mm | 24 | 571.074 | 6mm | 1,02 |
| 1139503 | HSK63CWN16080M | 16 48 80 40 10 | SS03M025 | 6mm | 24 | 571.075 | 6mm | 1,20 |
| 1519800 | HSK63CWN18080M | 18 50 80 40 10 | SS03M025 | 6mm | 24 | 571.075 | 6mm | 1,25 |
| 1120623 | HSK63CWN20080M | 20 52 80 36 10 | SS03M026 | 8mm | 58 | 571.076 | 8mm | 1,31 |
| 1124323 | HSK63CWN25095M | 25 65 95 50 10 | SS03M027 | 10mm | 92 | 571.077 | 10mm | 2,17 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches are not included.
