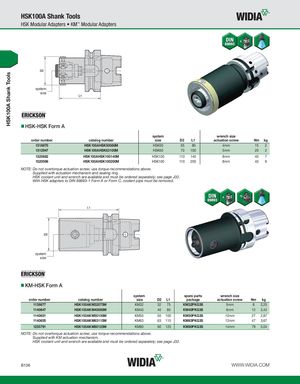

HSK100A Shank Tools HSK100A Shank Tools HSK Modular Adapters • KM™ Modular Adapters system size HSK-HSK Form A system wrench size order number catalog number size D2 L1 actuation screw Nm kg 1318870 HSK100AHSK50080M HSK50 55 80 4mm 15 2 1312947 HSK100AHSK63100M HSK63 70 100 5mm 20 2 1320682 HSK100AHSK100140M HSK100 110 140 8mm 40 7 1520596 HSK100AHSK100200M HSK100 110 200 8mm 40 9 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. HSK coolant unit and wrench are available and must be ordered separately; see page J32. With HSK adapters to DIN 69893-1 Form A or Form C, coolant pipe must be removed. L1 system size KM-HSK Form A system spare parts wrench size order number catalog number size D2 L1 package actuation screw Nm kg 1139877 HSK100AKM32075M KM32 32 75 KM32PKG3S 5mm 8 2,25 1140647 HSK100AKM40080M KM40 40 80 KM40PKG3S 6mm 12 2,42 1140651 HSK100AKM50100M KM50 50 100 KM50PKG3S 10mm 27 2,87 1140655 HSK100AKM63115M KM63 63 115 KM63PKG3S 12mm 47 3,67 1255791 HSK100AKM80125M KM80 80 125 KM80PKG3S 14mm 79 5,04 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B136 WWW.WIDIA.COM
