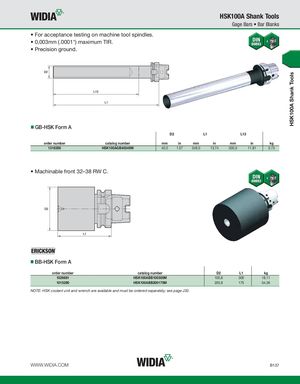

HSK100A Shank Tools HSK100A Shank Tools Gage Bars • Bar Blanks • For acceptance testing on machine tool spindles. • 0,003mm (.0001") maximum TIR. • Precision ground. GB-HSK Form A D2 L1 L13 order number catalog number mm in mm in mm in kg 1316356 HSK100AGB40349M 40,0 1.57 349,0 13.74 300,0 11.81 3,73 • Machinable front 32–38 RW C. BB-HSK Form A order number catalog number D2 L1 kg 1026681 HSK100ABB100300M 100,8 300 18,11 1015290 HSK100ABB200175M 200,8 175 34,36 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B137
