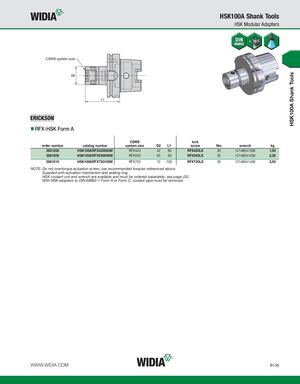

HSK100A Shank Tools HSK100A Shank Tools HSK Modular Adapters CSWS system size RFX-HSK Form A CSWS lock order number catalog number system size D2 L1 screw Nm wrench kg 3881208 HSK100ARFX420080M RFX420 42 80 RFX420LS 20 12148041300 1,00 3881209 HSK100ARFX550090M RFX550 55 90 RFX550LS 25 12148041400 2,20 3881210 HSK100ARFX720105M RFX720 72 105 RFX720LS 25 12148041400 2,50 NOTE: Do not overtorque actuation screw; use recommended torques referenced above. Supplied with actuation mechanism and sealing ring. HSK coolant unit and wrench are available and must be ordered separately; see page J32. With HSK adapters to DIN 69893-1 Form A or Form C, coolant pipe must be removed. WWW.WIDIA.COM B135
