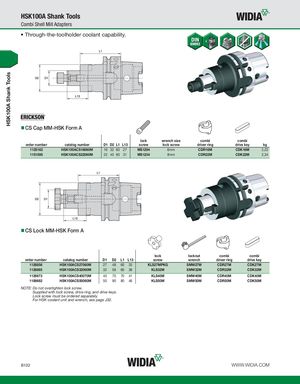

HSK100A Shank Tools HSK100A Shank Tools Combi Shell Mill Adapters • Through-the-toolholder coolant capability. CS Cap MM-HSK Form A lock wrench size combi combi order number catalog number D1 D2 L1 L13 screw lock screw driver ring drive key kg 1125162 HSK100ACS16060M 16 32 60 27 MS1294 6mm CDR16M CDK16M 2,22 1151595 HSK100ACS22060M 22 40 60 31 MS1234 8mm CDR22M CDK22M 2,34 CS Lock MM-HSK Form A lock locknut combi combi order number catalog number D1 D2 L1 L13 screw wrench driver ring drive key 1126856 HSK100ACS27060M 27 48 60 33 KLS27MPKG SMW27M CDR27M CDK27M 1126865 HSK100ACS32060M 32 58 60 38 KLS32M SMW32M CDR32M CDK32M 1126873 HSK100ACS40070M 40 70 70 41 KLS40M SMW40M CDR40M CDK40M 1188682 HSK100ACS50080M 50 90 80 46 KLS50M SMW50M CDR50M CDK50M NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw must be ordered separately. For HSK coolant unit and wrench, see page J32. B132 WWW.WIDIA.COM
