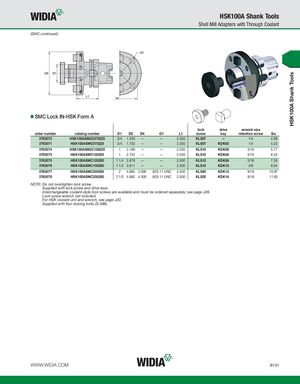

HSK100A Shank Tools HSK100A Shank Tools Shell Mill Adapters with Through Coolant (SMC continued) SMC Lock IN-HSK Form A lock drive wrench size order number catalog number D1 D2 D4 G1 L1 screw key retention screw lbs 3763072 HSK100ASM2C075225 3/4 1.535 — — 2.250 KLS07 — 1/4 4.99 3763071 HSK100ASMC075225 3/4 1.752 — — 2.250 KLS07 KDK05 1/4 5.23 3763074 HSK100ASM2C100225 1 2.189 — — 2.250 KLS10 KDK06 5/16 5.77 3763073 HSK100ASMC100225 1 2.752 — — 2.250 KLS10 KDK06 5/16 6.43 3763075 HSK100ASMC125250 1 1/4 2.878 — — 2.500 KLS12 KDK08 5/16 7.26 3763076 HSK100ASMC150250 1 1/2 3.811 — — 2.500 KLS15 KDK10 3/8 8.94 3763077 HSK100ASMC200250 2 4.882 4.000 .625-11 UNC 2.500 KLS20 KDK12 9/16 10.87 3763078 HSK100ASMC250250 2 1/2 4.882 4.000 .625-11 UNC 2.500 KLS25 KDK16 9/16 11.83 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. Supplied with four locking bolts (S-388). WWW.WIDIA.COM B131
