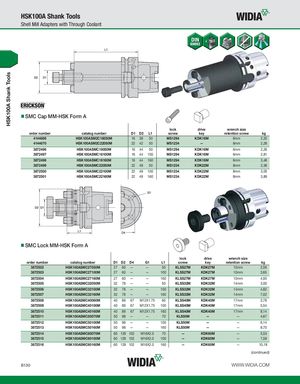

HSK100A Shank Tools HSK100A Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key retention screw kg 4144669 HSK100ASM2C16050M 16 38 50 MS1294 KDK16M 6mm 2,20 4144670 HSK100ASM2C22050M 22 42 50 MS1234 — 8mm 2,28 3872496 HSK100ASMC16050M 16 44 50 MS1294 KDK16M 6mm 2,26 3872497 HSK100ASMC16100M 16 44 100 MS1294 KDK16M 6mm 2,81 3872498 HSK100ASMC16160M 16 44 160 MS1294 KDK16M 6mm 3,48 3872499 HSK100ASMC22050M 22 49 50 MS1234 KDK22M 8mm 2,36 3872500 HSK100ASMC22100M 22 49 100 MS1234 KDK22M 8mm 3,05 3872501 HSK100ASMC22160M 22 49 160 MS1234 KDK22M 8mm 3,89 SMC Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 D4 G1 L1 screw key retention screw kg 3872502 HSK100ASMC27050M 27 60 — — 50 KLSS27M KDK27M 10mm 2,59 3872503 HSK100ASMC27100M 27 60 — — 100 KLSS27M KDK27M 10mm 3,65 3872504 HSK100ASMC27160M 27 60 — — 160 KLSS27M KDK27M 10mm 4,93 3872505 HSK100ASMC32050M 32 78 — — 50 KLSS32M KDK32M 14mm 3,00 3872506 HSK100ASMC32100M 32 78 — — 100 KLSS32M KDK32M 14mm 4,82 3872507 HSK100ASMC32160M 32 78 — — 160 KLSS32M KDK32M 14mm 7,02 3872508 HSK100ASMC40060M 40 89 67 M12X1.75 60 KLSS40M KDK40M 17mm 3,78 3872509 HSK100ASMC40100M 40 89 67 M12X1.75 100 KLSS40M KDK40M 17mm 5,54 3872510 HSK100ASMC40160M 40 89 67 M12X1.75 160 KLSS40M KDK40M 17mm 8,14 3872511 HSK100ASMC50070M 50 98 — — 70 KLS50M — — 4,67 3872512 HSK100ASMC50100M 50 98 — — 100 KLS50M — — 6,14 3872513 HSK100ASMC50160M 50 98 — — 160 KLS50M — — 8,70 3872514 HSK100ASMC60070M 60 129 102 M16X2.0 70 — KDK60M — 5,53 3872515 HSK100ASMC60100M 60 129 102 M16X2.0 100 — KDK60M — 7,58 3872516 HSK100ASMC60160M 60 129 102 M16X2.0 160 — KDK60M — 10,18 (continued) B130 WWW.WIDIA.COM
