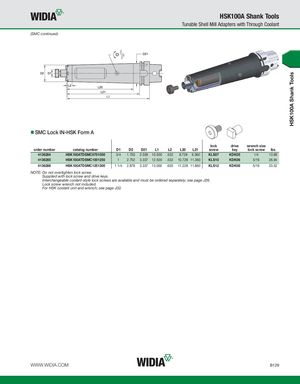

HSK100A Shank Tools HSK100A Shank Tools Tunable Shell Mill Adapters with Through Coolant (SMC continued) SMC Lock IN-HSK Form A lock drive wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw key lock screw lbs 4136284 HSK100ATDSMC0751050 3/4 1.750 2.559 10.500 .532 8.728 9.360 KLS07 KDK05 1/4 13.69 4136285 HSK100ATDSMC1001250 1 2.752 3.337 12.500 .532 10.728 11.360 KLS10 KDK06 5/16 26.94 4136286 HSK100ATDSMC1251300 1 1/4 2.878 3.337 13.000 .630 11.228 11.860 KLS12 KDK08 5/16 33.52 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench; see page J32. WWW.WIDIA.COM B129
