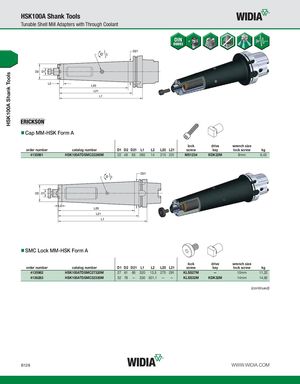

HSK100A Shank Tools HSK100A Shank Tools Tunable Shell Mill Adapters with Through Coolant Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw key lock screw kg 4135981 HSK100ATDSMC22260M 22 49 65 260 14 215 231 MS1234 KDK22M 8mm 6,43 SMC Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw key lock screw kg 4135982 HSK100ATDSMC27320M 27 61 85 320 13,5 275 291 KLSS27M — 10mm 11,22 4136283 HSK100ATDSMC32330M 32 78 — 330 301,1 — — KLSS32M KDK32M 14mm 14,92 (continued) B128 WWW.WIDIA.COM
