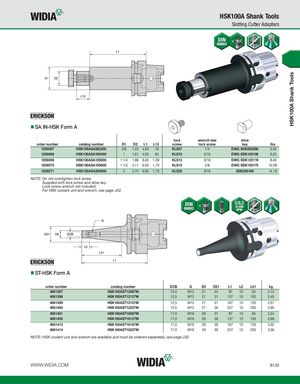

HSK100A Shank Tools HSK100A Shank Tools Slotting Cutter Adapters SA IN-HSK Form A lock wrench size drive order number catalog number D1 D2 L1 L13 screw lock screw key lbs 1256067 HSK100ASA062400 5/8 1.25 4.00 .78 KLS07 1/4 DWG SDK062088 5.46 1256068 HSK100ASA100400 1 1.61 4.00 .94 KLS10 5/16 DWG SDK100106 6.23 1256069 HSK100ASA125600 1 1/4 1.86 6.00 1.09 KLS12 5/16 DWG SDK125119 8.49 1256070 HSK100ASA150600 1 1/2 2.11 6.00 1.70 KLS15 3/8 DWG SDK150175 10.09 1256071 HSK100ASA200600 2 2.75 6.00 1.70 KLS20 9/16 SDK200169 14.19 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive key. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. ST-HSK Form A order number catalog number DCB G D2 D21 L1 L2 L21 kg 4061397 HSK100AST12087M 12,5 M12 21 24 87 10 50 2,13 4061398 HSK100AST12137M 12,5 M12 21 31 137 10 100 2,40 4061399 HSK100AST12187M 12,5 M12 21 31 187 10 150 2,57 4061400 HSK100AST12237M 12,5 M12 21 36 237 10 200 2,95 4061401 HSK100AST16087M 17,0 M16 29 31 87 10 50 2,24 4061402 HSK100AST16137M 17,0 M16 29 39 137 10 100 2,69 4061413 HSK100AST16187M 17,0 M16 29 39 187 10 150 3,02 4061414 HSK100AST16237M 17,0 M16 29 39 237 10 200 3,36 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B133
