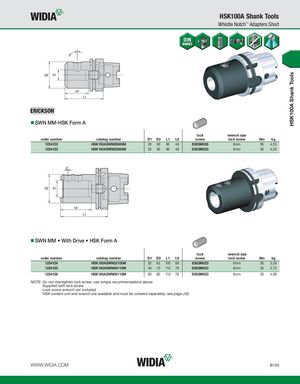

HSK100A Shank Tools HSK100A Shank Tools Whistle Notch™ Adapters Short SWN MM-HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1254122 HSK100ASWN20085M 20 50 85 48 SS03M026 8mm 95 4,53 1254123 HSK100ASWN25085M 25 55 85 48 SS03M023 6mm 35 4,25 SWN MM • With Drive • HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1254124 HSK100ASWN32100M 32 62 100 66 SS03M023 6mm 35 3,29 1254125 HSK100ASWN40110M 40 70 110 76 SS03M023 6mm 35 3,72 1254126 HSK100ASWN50110M 50 80 110 76 SS03M023 6mm 35 4,08 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B125
