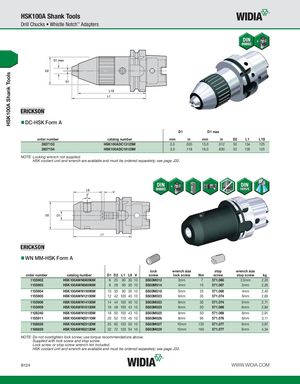

HSK100A Shank Tools HSK100A Shank Tools Drill Chucks • Whistle Notch™ Adapters DC-HSK Form A D1 D1 max order number catalog number mm in mm in D2 L1 L1S 2637153 HSK100ADC13125M 0,5 .020 13,0 .512 50 134 125 2637154 HSK100ADC16125M 3,0 .118 16,0 .630 52 135 125 NOTE: Locking wrench not supplied. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WN MM-HSK Form A lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 1155902 HSK100AWN06090M 6 25 90 30 10 SS03M012 3mm 7 571.060 2,5mm 2,20 1155903 HSK100AWN08090M 8 28 90 30 10 SS03M014 4mm 15 571.067 3mm 2,26 1155904 HSK100AWN10090M 10 35 90 35 10 SS03M018 5mm 25 571.068 4mm 2,40 1155905 HSK100AWN12100M 12 42 100 40 10 SS03M023 6mm 35 571.074 5mm 2,65 1155906 HSK100AWN14100M 14 44 100 40 10 SS03M023 6mm 35 571.074 5mm 2,71 1155909 HSK100AWN16100M 16 48 100 43 10 SS03M025 6mm 50 571.069 6mm 2,84 1126240 HSK100AWN18100M 18 50 100 43 10 SS03M025 6mm 50 571.069 6mm 2,91 1155911 HSK100AWN20110M 20 52 110 45 10 SS03M026 8mm 95 571.076 6mm 3,11 1188828 HSK100AWN25120M 25 65 120 50 10 SS03M027 10mm 135 571.077 6mm 3,97 1188829 HSK100AWN32120M 32 72 120 54 10 SS03M029 10mm 160 571.077 6mm 4,34 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B124 WWW.WIDIA.COM
