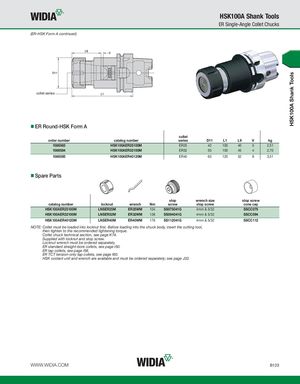

HSK100A Shank Tools HSK100A Shank Tools ER Single-Angle Collet Chucks (ER-HSK Form A continued) collet series ER Round-HSK Form A collet order number catalog number series D11 L1 L9 V kg 1086563 HSK100AER25100M ER25 42 100 40 5 2,51 1086584 HSK100AER32100M ER32 50 100 45 4 2,70 1086585 HSK100AER40120M ER40 63 120 52 8 3,51 Spare Parts stop wrench size stop screw catalog number locknut wrench Nm screw stop screw cone cap HSK100AER25100M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 SSCC075 HSK100AER32100M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 SSCC094 HSK100AER40120M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 SSCC112 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B123
