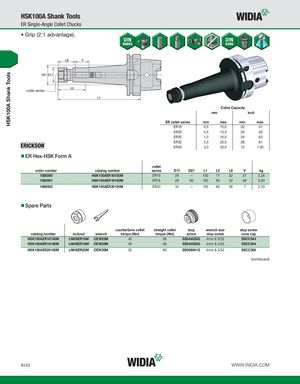

HSK100A Shank Tools HSK100A Shank Tools ER Single-Angle Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Hex-HSK Form A collet order number catalog number series D11 D21 L1 L2 L9 V kg 1086560 HSK100AER16100M ER16 28 — 100 71 32 27 2,26 1086561 HSK100AER16160M ER16 28 60 160 85 32 48 2,83 1086562 HSK100AER20100M ER20 34 — 100 65 36 7 2,33 Spare Parts counterbore collet straight collet stop wrench size stop screw catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw cone cap HSK100AER16100M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK100AER16160M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK100AER20100M LNHSER20M OEW30M 32 80 SS056041G 4mm & 5/32 SSCC056 (continued) B122 WWW.WIDIA.COM
