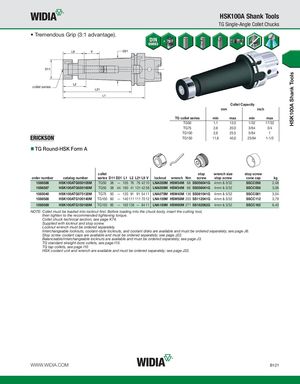

HSK100A Shank Tools HSK100A Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 TG Round-HSK Form A collet stop wrench size stop screw order number catalog number series D11 D21 L1 L2 L21 L9 V locknut wrench Nm screw stop screw cone cap kg 1086586 HSK100ATG050105M TG50 38 — 105 76 76 42 10 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 2,48 1086587 HSK100ATG050160M TG50 38 44 160 41 131 42 58 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 3,06 1085040 HSK100ATG075120M TG75 50 — 120 91 91 54 11 LNA075M HSW45M 136 SS081041G 4mm & 5/32 SSCC081 3,04 1086588 HSK100ATG100140M TG100 60 — 140 111 111 70 12 LNA100M HSW58M 203 SS112041G 4mm & 5/32 SSCC112 3,79 1086589 HSK100ATG150165M TG150 85 — 165 136 — 84 11 LNA150M HSW80M 271 SS162062G 4mm & 5/32 SSCC162 6,40 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10 HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B121
