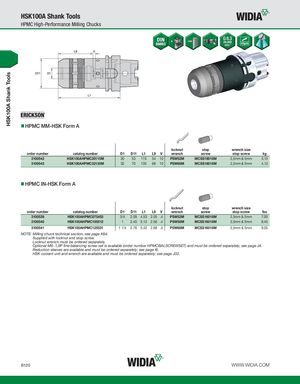

HSK100A Shank Tools HSK100A Shank Tools HPMC High-Performance Milling Chucks HPMC MM-HSK Form A locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw kg 3100542 HSK100AHPMC20115M 20 53 115 54 10 PSW52M MCSS16018M 2,5mm & 5mm 3,13 3100543 HSK100AHPMC32135M 32 70 135 68 10 PSW68M MCSS16018M 2,5mm & 5mm 4,13 HPMC IN-HSK Form A locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw lbs 3100539 HSK100AHPMC075453 3/4 2.09 4.53 2.05 .4 PSW52M MCSS16018M 2,5mm & 5mm 7.00 3100540 HSK100AHPMC100512 1 2.40 5.12 2.56 .4 PSW58M MCSS16018M 2,5mm & 5mm 8.45 3100541 HSK100AHPMC125531 1 1/4 2.76 5.32 2.68 .4 PSW68M MCSS16018M 2,5mm & 5mm 9.05 NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B120 WWW.WIDIA.COM
