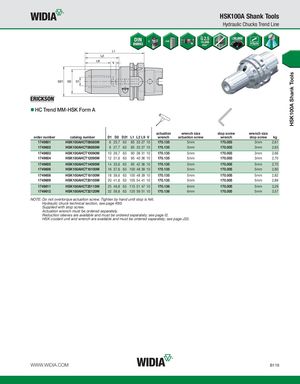

HSK100A Shank Tools HSK100A Shank Tools Hydraulic Chucks Trend Line HC Trend MM-HSK Form A actuation wrench size stop screw wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw kg 1749601 HSK100AHCT06085M 6 25,7 63 85 33 27 10 170.135 5mm 170.003 3mm 2,61 1749602 HSK100AHCT08085M 8 27,7 63 85 33 27 10 170.135 5mm 170.003 3mm 2,63 1749603 HSK100AHCT10090M 10 29,7 63 90 38 31 10 170.135 5mm 170.003 3mm 2,66 1749604 HSK100AHCT12095M 12 31,6 63 95 40 36 10 170.135 5mm 170.003 3mm 2,70 1749605 HSK100AHCT14095M 14 33,6 63 95 42 36 10 170.135 5mm 170.005 5mm 2,70 1749606 HSK100AHCT16100M 16 37,6 63 100 48 39 10 170.135 5mm 170.005 5mm 2,80 1749608 HSK100AHCT18100M 18 39,6 63 100 48 39 10 170.135 5mm 170.005 5mm 2,82 1749609 HSK100AHCT20105M 20 41,6 63 105 54 41 10 170.135 5mm 170.005 5mm 2,89 1749611 HSK100AHCT25115M 25 49,8 63 115 51 47 10 170.136 6mm 170.005 5mm 3,29 1749612 HSK100AHCT32120M 32 59,8 63 120 59 51 10 170.136 6mm 170.005 5mm 3,57 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B119
