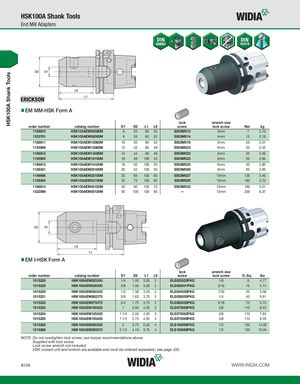

HSK100A Shank Tools HSK100A Shank Tools End Mill Adapters EM MM-HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1188810 HSK100AEM06080M 6 25 80 52 SS03M012 3mm 7 2,16 1333701 HSK100AEM08080M 8 28 80 52 SS03M014 4mm 15 2,19 1188811 HSK100AEM10080M 10 35 80 52 SS03M018 5mm 25 2,31 1155899 HSK100AEM12080M 12 42 80 49 SS03M023 6mm 35 2,45 1188812 HSK100AEM14080M 14 44 80 49 SS03M023 6mm 35 2,49 1155900 HSK100AEM16100M 16 48 100 53 SS03M025 6mm 50 2,84 1188813 HSK100AEM18100M 18 50 100 53 SS03M025 6mm 50 2,90 1126421 HSK100AEM20100M 20 52 100 55 SS03M026 8mm 95 2,95 1149696 HSK100AEM25100M 25 65 100 60 SS03M027 10mm 135 3,46 1126304 HSK100AEM32100M 32 72 100 65 SS03M029 10mm 160 3,73 1188814 HSK100AEM40120M 40 90 120 75 SS03M032 10mm 160 5,51 1322096 HSK100AEM50130M 50 100 130 85 — 12mm 200 6,37 EM I-HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 1015228 HSK100AEM025300 1/4 1.00 3.00 2 ELS025025PKG 1/8 8 4.77 1015229 HSK100AEM038300 3/8 1.00 3.00 2 ELS038031PKG 3/16 15 4.74 1015230 HSK100AEM050325 1/2 1.38 3.25 2 ELS044038PKG 7/32 20 5.06 1015231 HSK100AEM062375 5/8 1.63 3.75 2 ELS056050PKG 1/4 40 5.61 1015232 HSK100AEM075375 3/4 1.75 3.75 2 ELS062050PKG 5/16 70 5.75 1015233 HSK100AEM100425 1 2.00 4.25 2 ELS075056PKG 3/8 110 6.43 1015254 HSK100AEM125425 1 1/4 2.50 4.25 3 ELS075062PKG 3/8 110 7.63 1015255 HSK100AEM150450 1 1/2 2.75 4.50 3 ELS075069PKG 3/8 110 8.35 1015285 HSK100AEM200550 2 3.75 5.50 4 ELS100088PKG 1/2 150 14.05 1015286 HSK100AEM250575 2 1/2 4.19 5.75 4 ELS100088PKG 1/2 150 16.04 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B126 WWW.WIDIA.COM
